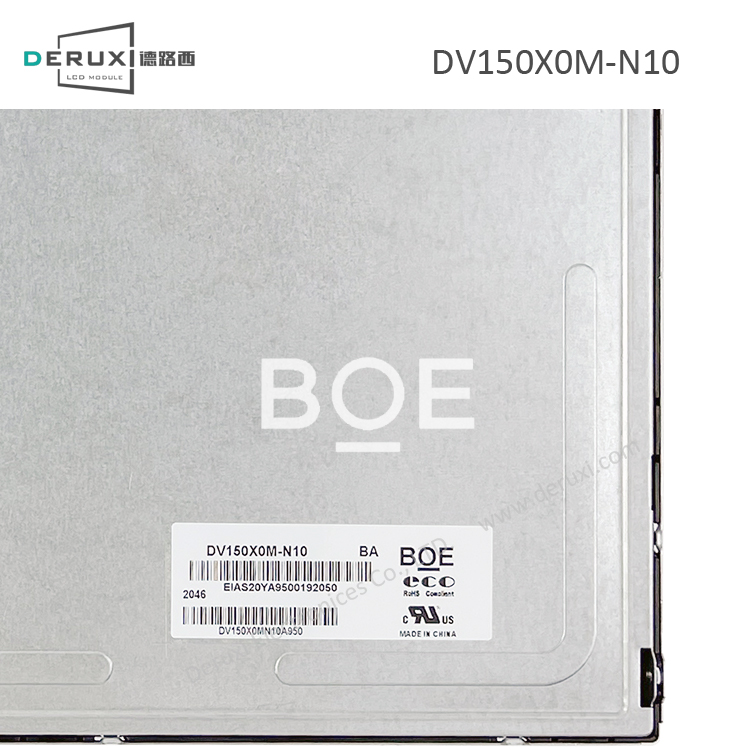

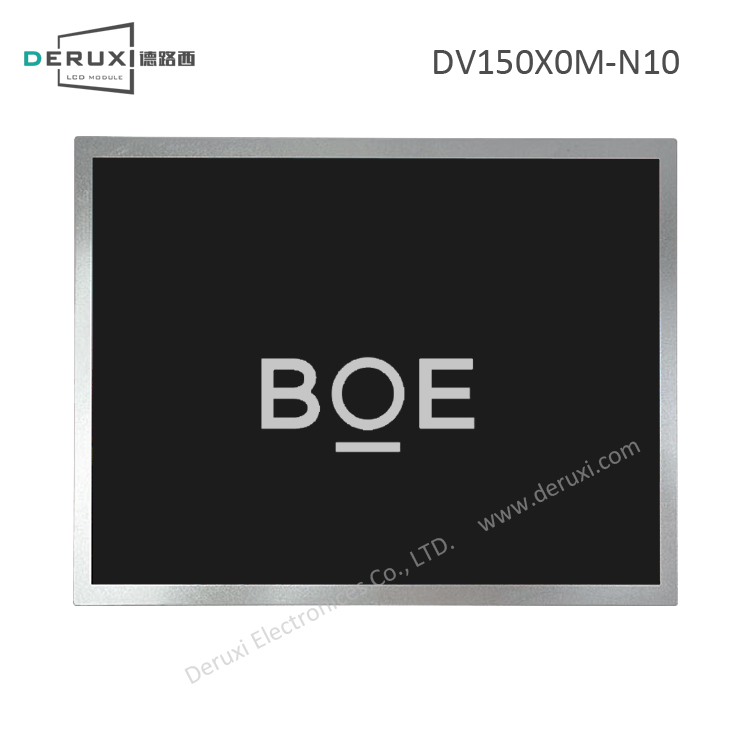

| BOE LCD Module DV150X0M-N10 Parameters for details |
| 1、BOE LCD module DV150X0M-N10 optical and mechanical details |
| LCD Type |
LCM a-Si TFT-LCD |
Display Mode |
TN Normally White,Transmissive |
| Best View |
ALL |
Display Colors |
262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Operating Temp. |
-20~70℃ |
Storage Temp. |
-30~80℃ |
| Active Area(mm) |
246(H) × 184.5(V) mm |
Outline Dim.(mm) |
279(H) × 209(V) mm |
| Pixel Pitch(mm) |
0.3075×0.3075 [82PPI] |
Depth(mm) |
5.73/9.3 (Typ./Max.) mm |
| Aspect Ratio |
4:3 (H:V) |
Orientation |
Landscape type |

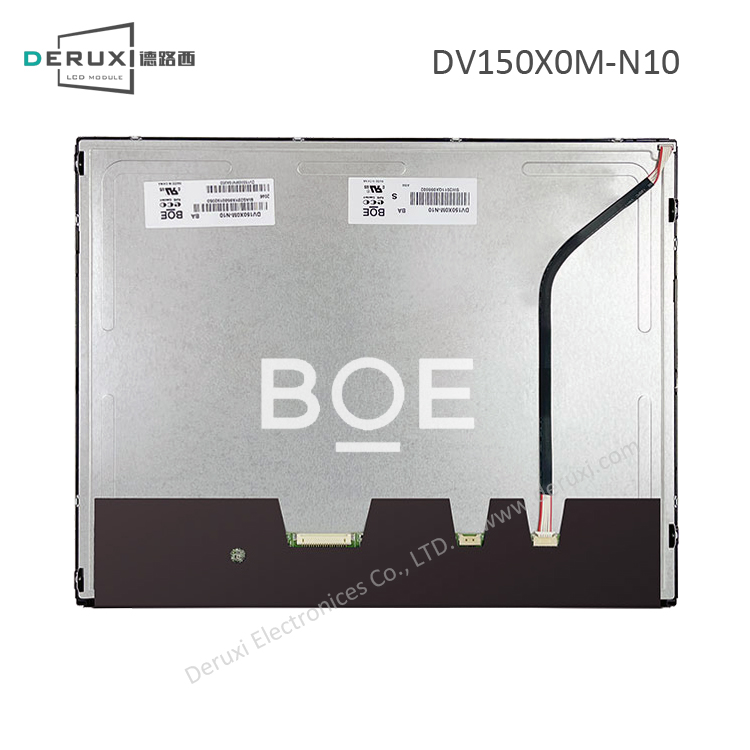

| 2、BOE LCD module DV150X0M-N10 signal details |
| Voltage Supply(IDD) |
120mA (Typ.) |
Current Supply(VDD) |
3.3V (Typ.) |
| Power Consumption |
0.4/0.45W (Typ./Max.) |
Interface Type |
LVDS (1 ch, 6/8-bit) |
| Signal Type |
Connector |
Interface Pitch(mm) |
1.25 mm |
| Interface Quantity(pcs) |
1 |
Interface Pins |
20 |
| Connector brand and model |
STM MSB240420 |
| 3、BOE LCD module DV150X0M-N10 backlight Details |
| Backlight Type |
WLED |
LEDs Quantity |
6S4P |
| Voltage Supply(IBL) |
- |
Current Supply(VBL) |
12.0±0.5V |
| BL Power Consumption |
- |
BL Life Time |
30K (Min.) Hours |
| Interface Type |
Connector |
Interface Pitch(mm) |
1.25 mm |
| Interface Quantity(pcs) |
1 |
Interface Pins |
5 |
| Connector brand and model |
STM BMSB24038P5 |
LED Driver |
Yes |
| 4、BOE LCD module DV150X0M-N10 packing details |
| LCM weight(g) |
500g (Max.) |
Quantity/Carton (pcs) |
8 |
| N.W. (Kgs) |
- |
G.W. (Kgs) |
- |
| Box Size |
375×280×290 mm (L×W×H) |
| *Supplementary note: the above DV150X0M-N10 data for reference only, if the individual parameters are not accurate, you can contact our customer service to provide DV150X0M-N10 product specifications, products are subject to the manufacturer PDF specifications. |
