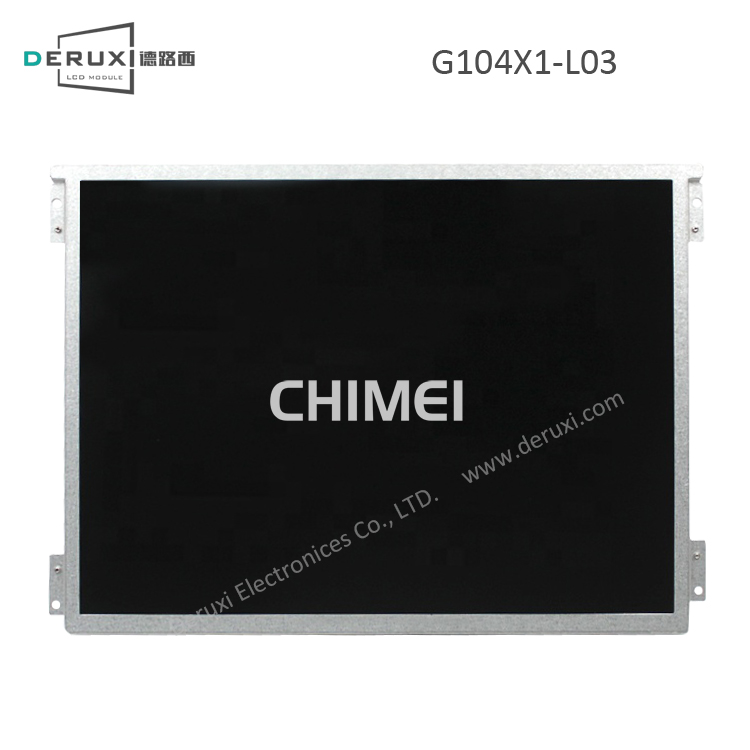

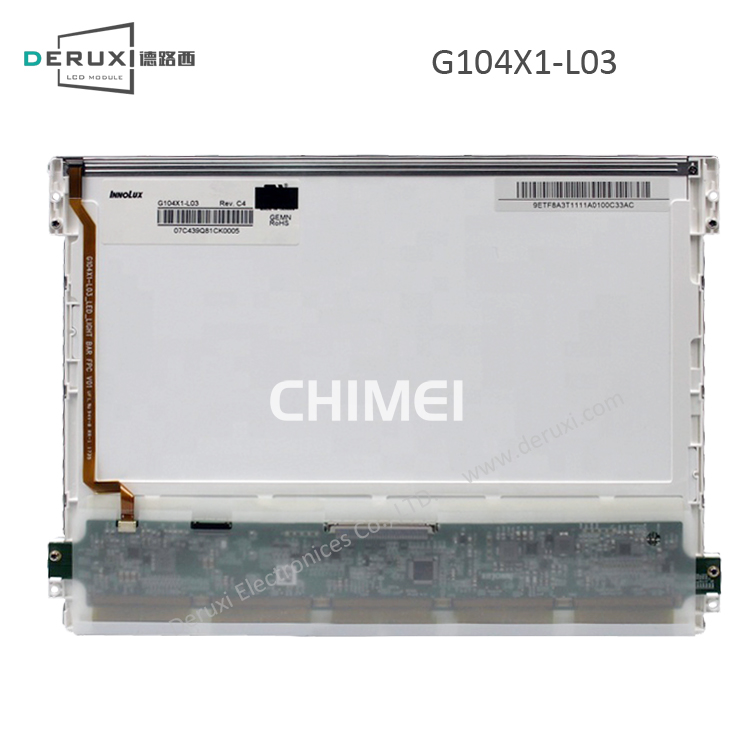

G104X1-L03
- Brand
- CHIMEI
- Panel Size
- 10.4"
- Number of Pixel
- 1024(RGB)×768
- Luminance
- 350 cd/m²
- Viewing Angle
- 88/88/88/88
- Interface
- LVDS (1 ch, 6/8-bit)
- Contrast Ratio
- 1000:1
- Operating Temp.
- -20 ~ 70 °C
- Production State
- In Production
| CHIMEI LCD Module G104V1-T03 Parameters for details | |||
| 1、CHIMEI LCD module G104V1-T03 optical and mechanical details | |||
| LCD Type | LCM a-Si TFT-LCD | Display Mode | Super MVA Normally Black,Transmissive |
| Best View | ALL | Display Colors | 262K (6-bit) |
| Operating Temp. | -30 ~ 80 °C | Storage Temp. | -30 ~ 80 °C |
| Active Area(mm) | 211.2(H) × 158.4(V) mm | Outline Dim.(mm) | 225.5(H) × 176.3(V) mm |
| Pixel Pitch(mm) | 0.2055×0.2055 mm [123PPI] | Depth(mm) | 7.81/9.34 (Typ./Max.) |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| 2、CHIMEI LCD module G104V1-T03 signal details | |||
| Voltage Supply(IDD) | 490/390mA (Typ.)(ICC) | Current Supply(VDD) | 3.3/5.0V (Typ.)(VCC) |
| Power Consumption | 1.617W (Typ.) | Interface Type | CMOS/TTL (1 ch, 6-bit) |
| Signal Type | Connector | Interface Pitch(mm) | 1.0 |
| Interface Quantity(pcs) | 1 | Interface Pins | 31 |
| Connector brand and model | HRS DF9C-31P-1V | ||
| 3、CHIMEI LCD module G104V1-T03 backlight Details | |||
| Backlight Type | WLED | LEDs Quantity | - |
| Voltage Supply(IBL) | 0.61A (Typ.) | Current Supply(VBL) | 10.8/12.0/12.6V (Min./Typ./Max.) |
| BL Power Consumption | 7.32W (Typ.) | BL Life Time | 50K (Min.) Hours |
| Interface Type | Connector | Interface Pitch(mm) | 1.25 |
| Interface Quantity(pcs) | 1 | Interface Pins | 5 |
| Connector brand and model | E&T 3823K-F05N-00L | LED Driver | Yes |
| 4、CHIMEI LCD module G104V1-T03 packing details | |||
| LCM weight(g) | 395±50g | Quantity/Carton (pcs) | 18 |
| N.W. (Kgs) | 7.11 | G.W. (Kgs) | 11.23 Kgs |
| Box Size | 465×362×314 mm (L×W×H) | ||
|
*Supplementary note: the above G104V1-T03 data for reference only, if the individual parameters are not accurate, you can contact our customer service to provide G104V1-T03 product specifications, products are subject to the manufacturer PDF specifications. |
|||
