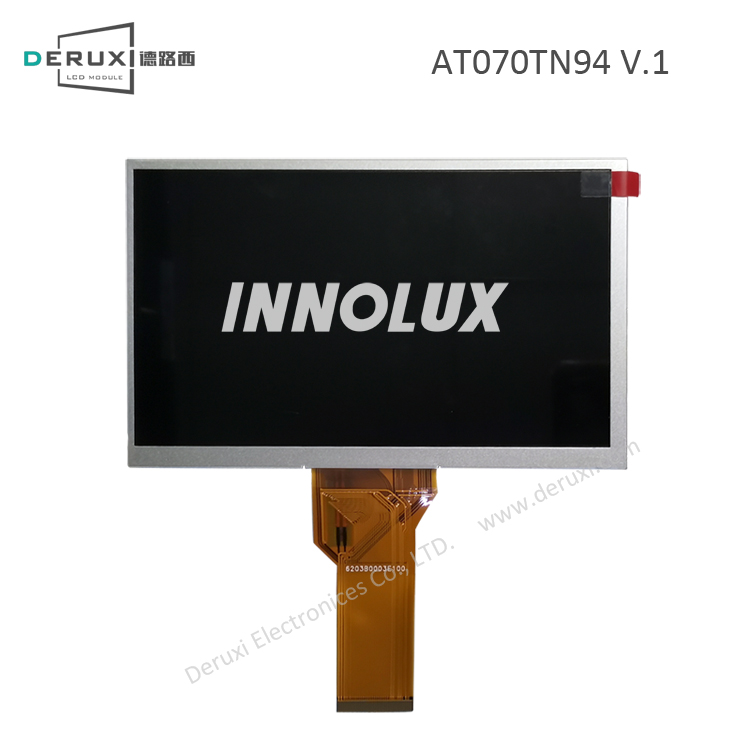

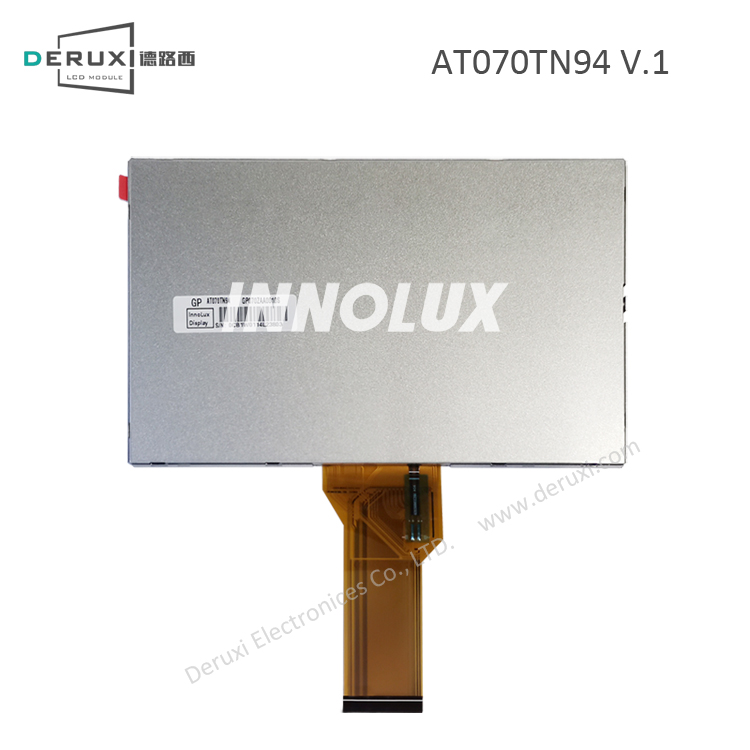

| InnoLux LCD Module AT070TN94 V.1 Parameters for details |
| 1、InnoLux LCD module AT070TN94 V.1 optical and mechanical details |
| LCD Type |
LCM a-Si TFT-LCD |
Display Mode |
TN Normally White,Transmissive |
| Best View |
6 o'clock |
Display Colors |
262K (6-bit) |
| Operating Temp. |
-30 ~ 85 °C |
Storage Temp. |
-30 ~ 85 °C |
| Active Area(mm) |
154.08(H) × 85.92(V) mm |
Outline Dim.(mm) |
164.9(H) × 100(V) mm |
| Pixel Pitch(mm) |
0.1926×0.1790 (H×V) [134PPI] |
Depth(mm) |
5.7±0.3 mm |
| Aspect Ratio |
16:9 (H:V) |
Orientation |
Landscape type |
| 2、InnoLux LCD module AT070TN94 V.1 signal details |
| Voltage Supply(IDD) |
4.0/20.0/0.2/0.2mA (Typ.)(ICC/IAVDD/IGH/IGL) |
Current Supply(VDD) |
3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Power Consumption |
226mW (Typ.) |
Interface Type |
Parallel RGB (1 ch, 6/8-bit) |
| Signal Type |
FPC |
Interface Pitch(mm) |
0.5 |
| Interface Quantity(pcs) |
1 |
Interface Pins |
50 |
| Connector brand and model |
- |
| 3、InnoLux LCD module AT070TN94 V.1 backlight Details |
| Backlight Type |
WLED |
LEDs Quantity |
3S9P |
| Voltage Supply(IBL) |
170/180/200mA (Min./Typ./Max.) |
Current Supply(VBL) |
9.3±0.6V |
| BL Power Consumption |
1.674W (Typ.) |
BL Life Time |
20K (Min.) Hours |
| Interface Type |
Included in panel signal interface |
Interface Pitch(mm) |
- |
| Interface Quantity(pcs) |
- |
Interface Pins |
- |
| Connector brand and model |
- |
LED Driver |
- |

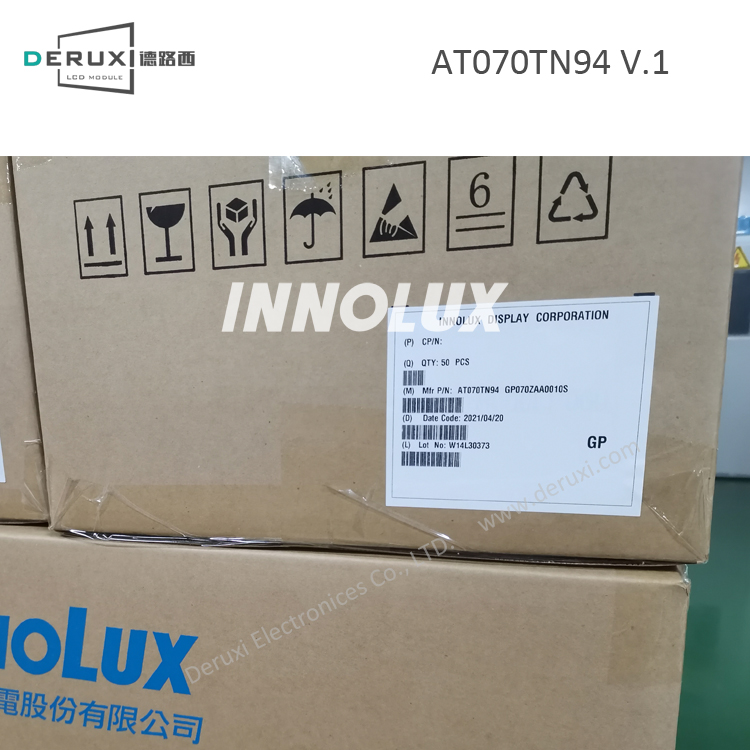

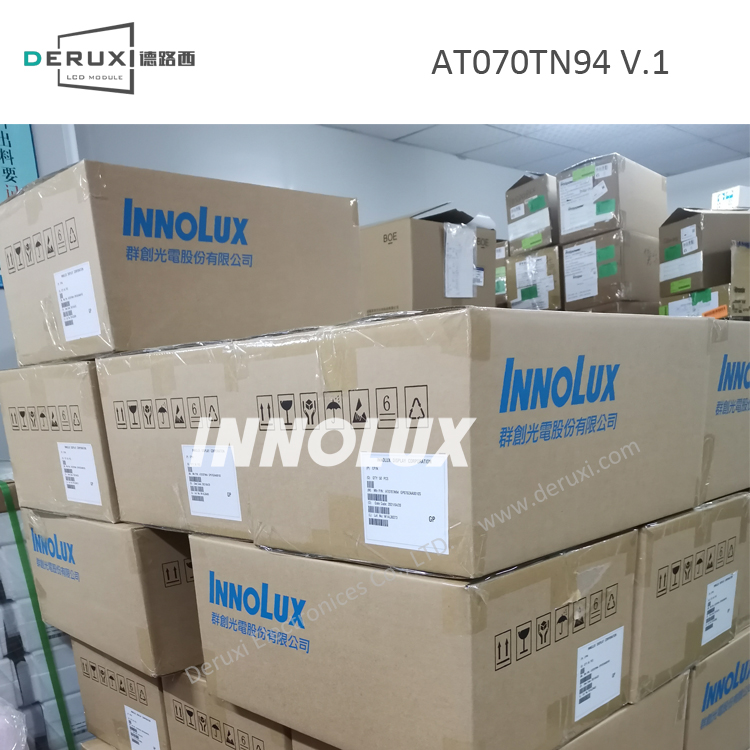

| 4、InnoLux LCD module AT070TN94 V.1 packing details |
| LCM weight(g) |
154g (Typ.) |
Quantity/Carton (pcs) |
50 |
| N.W. (Kgs) |
7.70 |
G.W. (Kgs) |
10.68±0.53 |
| Box Size |
530×350×255 mm (L×W×H) |
| *Supplementary note: the above AT070TN94 V.1 data for reference only, if the individual parameters are not accurate, you can contact our customer service to provide AT070TN94 V.1 product specifications, products are subject to the manufacturer PDF specifications. |
