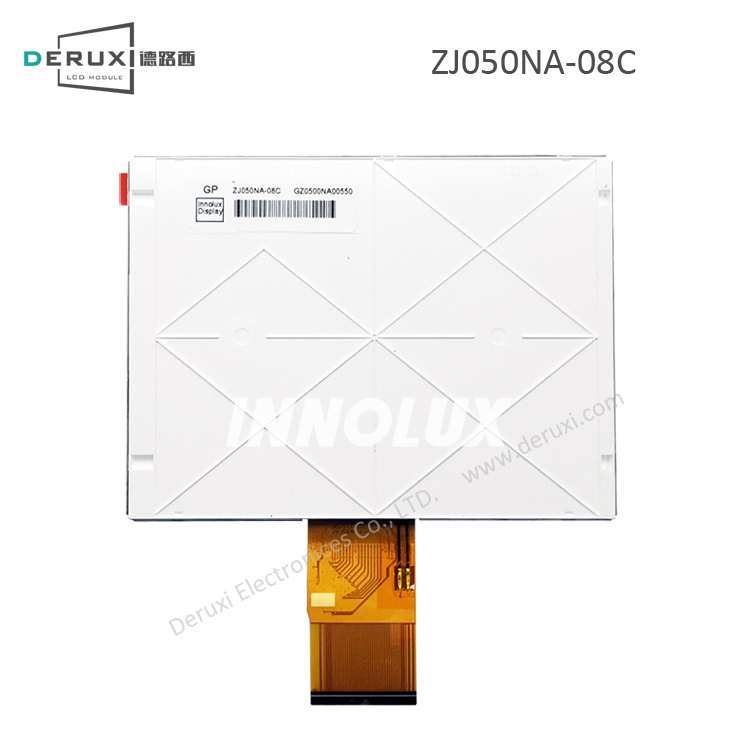

| InnoLux LCD Module ZJ050NA-08C Parameters for details |
| 1、InnoLux LCD module ZJ050NA-08C optical and mechanical details |
| LCD Type |
LCM a-Si TFT-LCD |
Display Mode |
TN Normally White,Transmissive |
| Best View |
6 o'clock |
Display Colors |
16.7M (8-bit) |
| Operating Temp. |
-20 ~ 70 °C |
Storage Temp. |
-30 ~ 80 °C |
| Active Area(mm) |
101.76(H) × 76.32(V) mm |
Outline Dim.(mm) |
117.65(H) × 88.43(V) mm |
| Pixel Pitch(mm) |
0.159×0.159 (H×V) mm [159PPI] |
Depth(mm) |
5.7±0.2 |
| Aspect Ratio |
4:3 (H:V) |
Orientation |
Landscape type |
| 2、InnoLux LCD module ZJ050NA-08C signal details |
| Voltage Supply(IDD) |
10/12/0.21/0.23mA (Typ.)(DIDD/AIDD/IGH/IGL) |
Current Supply(VDD) |
3.3/10.4/17.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Power Consumption |
0.2W (Typ.) |
Interface Type |
Parallel RGB (1 ch, 8-bit) |
| Signal Type |
FPC |
Interface Pitch(mm) |
0.50 |
| Interface Quantity(pcs) |
1 |
Interface Pins |
50 |
| Connector brand and model |
- |
| 3、InnoLux LCD module ZJ050NA-08C backlight Details |
| Backlight Type |
WLED |
LEDs Quantity |
- |
| Voltage Supply(IBL) |
60/80mA (Typ./Max.) |
Current Supply(VBL) |
14.5/16/17.5V (Min./Typ./Max.) |
| BL Power Consumption |
0.96W (Typ.) |
BL Life Time |
15K (Min.) Hours |
| Interface Type |
Included in panel signal interface |
Interface Pitch(mm) |
- |
| Interface Quantity(pcs) |
- |
Interface Pins |
- |
| Connector brand and model |
- |
LED Driver |
- |
| 4、InnoLux LCD module ZJ050NA-08C packing details |
| LCM weight(g) |
67.0 (Typ.) |
Quantity/Carton (pcs) |
60 |
| N.W. (Kgs) |
4.02 |
G.W. (Kgs) |
6.53±0.33 |
| Box Size |
530×355×255 mm (L×W×H) |
| *Supplementary note: the above ZJ050NA-08C data for reference only, if the individual parameters are not accurate, you can contact our customer service to provide ZJ050NA-08C product specifications, products are subject to the manufacturer PDF specifications. |
